Still Spirits Create+ T500 Column & Condenser

Still Spirits Create Plus - T500 Column & Condenser

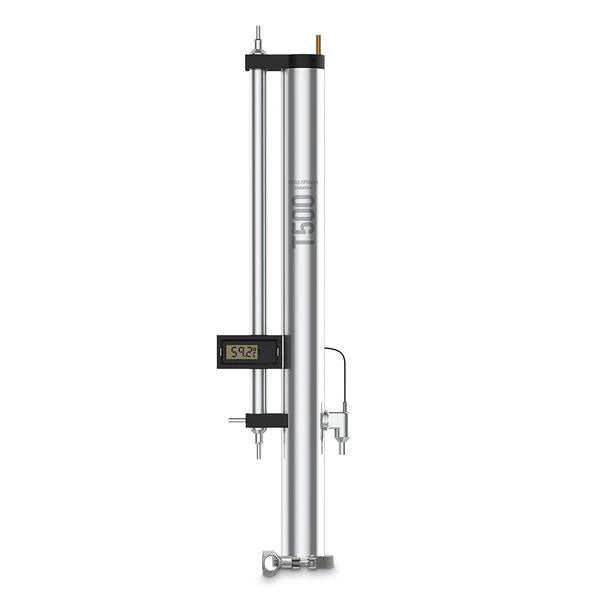

Engineered for simplicity and efficiency. The Create+ T500 Column & Condenser is a high-performance reflux column and condenser that produces exceptionally clean distillate.

This all-in-one apparatus eliminates the need for separate components, simplifying the distillation process without compromising performance. Its 2" tri-clamp connection also allows you to experiment with different setups and attachments. The T500 comes pre-packed with copper and stainless steel saddles for optimal vapour reflux, helping you create a superior-quality distillate.

Ideal for both novice and experienced distillers, the T500 redefines convenience in craft distillation, delivering unmatched results with a seamless blend of form and function. Constructed from 304-grade stainless steel, it ensures durability, corrosion resistance, and long-lasting performance.

When used for alcohol, the T500 delivers precision separation, producing alcohol up to 93% ABV (186 US proof) and extracting up to 95% of the alcohol in your wash. The resulting neutral spirit makes excellent vodka or a clean base for flavourings, gins, and other botanicals.

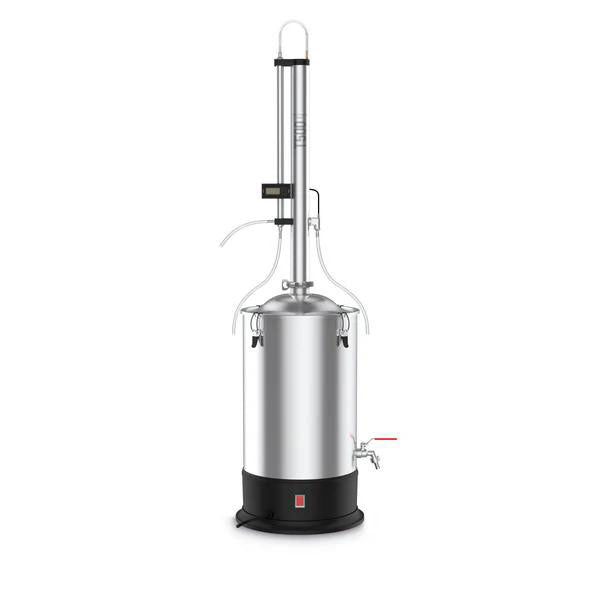

Compatible with the Create+ Boiler 25 L (6.6 US Gal) and Grainfather G30 120v, G30 220v, G40, and G70 Brewing Systems, the T500 Pro is a powerful and flexible addition to any craft distiller’s setup. Note: Grainfather systems require the matching Distilling Lid for the respective unit (sold separately).

Note: T500 Boiler is not included.

Key Features

• All-in-one reflux column and condenser
• For intermediate–advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304-grade stainless steel construction

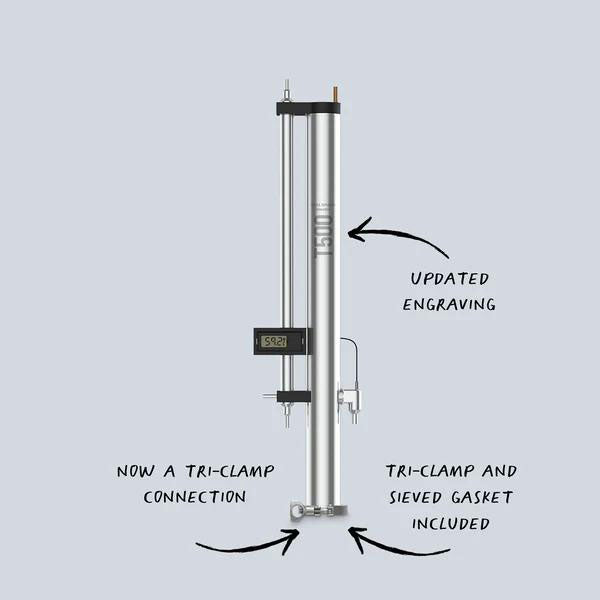

• 2" tri-clamp connection
• Pre-packed with stainless steel and copper saddles
• Faucet adapter for easy cooling water connection
• Compatible with the Create+ Boiler 25 L, and Grainfather G30, G40, and G70 Brewing Systems

Specifications

• Dimensions: H 27.2" x W 3.3" x D 6.3" (69 cm x 8.5 cm x 16 cm)
• Weight: 5–6.6 lbs (2.3–2.99 kg)
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use: approx. 54 US Gal (200 L) per 6.6 US Gal (25 L) distillation*
• Yield: 2.1 US Gal (8 L) of 40% ABV alcohol per 6.6 US Gal (25 L) wash**
• Purity: Up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**

* When used with the Create+ Water Flow Regulator.
**Per 6.6 US Gal (25 L) Turbo Classic 8 Production Pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.

Included in the Box

• Create+ T500 Column & Condenser
• Create+ 2" Tri-Clamp
• Copper and Stainless Steel Saddles (pre-packed)
• Digital Thermometer
• 2 x Cooling Water Tubes
• Ceramic Boil Enhancers
• Tap Adapter Flow Controller with kitchen and garden tap adapters
• Instructions

Distilling alcohol without permits or licensing is illegal in many countries, including the United States. Stills can also be used to produce essential oils, vinegar, purified water and engine fuel (requires permit in USA). It is the customer's responsibility to research their local, state, and federal laws and abide by those laws. Northern Brewer is not responsible for any damage or injury caused by either misuse or unlawful use. Sales of Distilling Equipment Terms & Conditions
